Cellular Standards Cat 4
150/50 Mbps DL/UL
Cellular Bands EU:
FDD-LTE: B1/B3/B5/B7/B8/B20/B28 (2100/1800/850/2600/900/800/700 MHz)
TDD-LTE: B38/B40 (2600/2300 MHz)
HSPA/UMTS: B1/B5/B8 (2100/850/900 MHz)

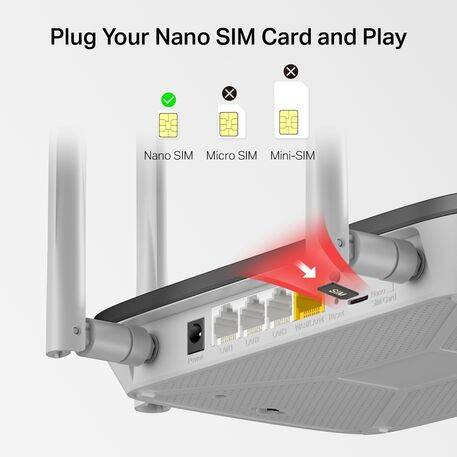

SIM 1× Nano SIM Card Slot
Wi-Fi Class AC1200
Wi-Fi (2.4 GHz) 300 Mbps
Wi-Fi (5 GHz) 867 Mbps
Wireless Standards IEEE 802.11ac/a/b/g/n
Max Channel Width 80 MHz
Reception Sensitivity 11g 6 Mbps: -95 dBm
11g 54 Mbps: -77 dBm
11n HT20 MCS7: -74 dBm
11n HT40 MCS7: -71 dBm
11a 6 Mbps: -92 dBm
11a 54 Mbps: -75 dBm
11ac VHT20 MCS8: -70 dBm
11ac VHT40 MCS9: -65 dBm
11ac VHT80 MCS9: -61 dBm
MAX Capacity 64
Recommended Clients Limit 32
Wireless Security WPA-PSK / WPA2-PSK
Wireless Functions Smart connect
WPS
Wireless Schedule
Wireless Clients Statistics
Dimensions 219 × 140 × 32 mm
(8.62 × 5.51 × 1.26 in)

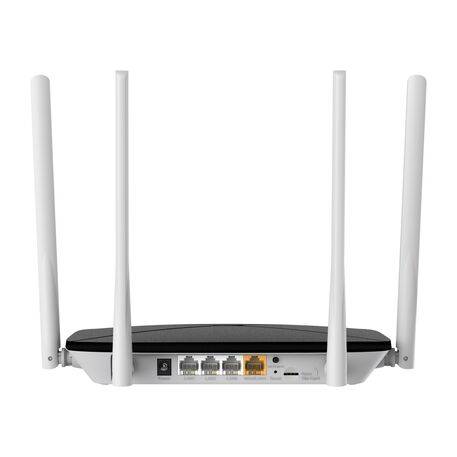

Interfaces 1× FE LAN/WAN Port
3× FE LAN Ports
1× Nano SIM Card Slot
Antenna 2 External Detachable 4G LTE Antennas
2 External Wi-Fi Antennas
Button 1×WPS/Wi-Fi Button
1×Reset Button
External Power Supply 12V/1A
Installation Desktop
LED 1× POWER
1× Internet
1× LAN
3× Signal
Retail Package Dimension 303 × 288 × 65
Units per Carton 10
Carton Dimension 590 × 315 × 340
Operation Mode 3G/4G Router
Wireless Router
Cellular Mode 4G Preferred
4G Only
3G Only
Cellular APN Data Roaming
Network Search
Profile Create
APN Settings
ISP File Upgrade
PIN Management
WAN Mode Dynamic IP
Static IP
PPPoE
PPTP
L2TP
NAT Forwarding ALG
Virtual Server
Port Triggering
UPnP
DMZ
Protocols IPv4
IPv6
Data Settings Data Statistics
Data Limit
Guest Network 2.4 GHz Guest Network
5 GHz Guest Network
Parental Controls Time Control
Website Filtering
DHCP Server
DHCP Client List
Address Reservation
DDNS DynDNS
NO-IP
SMS Inbox
New Message
Outbox
Drafts
QoS v
Security IPv4 SPI Firewall
DoS Protection
Service Filtering
Access Control
IP & MAC Binding
IPv6 Firewall
ISP Feature TR-069
System Time Settings
LED Control
Diagnostics
Firmware Upgrade
Backup&Restore
Reboot
Administration
System Log
CWMP Settings
SNMP Settings
Traffic Monitor
LED Management LED Control
Night Mode
Device Management MERCUSYS APP
Web GUI
Cloud Firmware Upgrade over the Cloud
Remote Management
Language English
German
Spanish
Greek
French
Italian
Polish
Indonesian
Russian
Thai
Certifications CE
Network Services Enabled by Default Web Server
Manage and configure device through web (HTTP/HTTPS)
• Port: 80/443 Protocol: TCP
DHCP Server
IP address assignment (DHCP)
• Port: 67 Protocol: UDP
App management
Manage and configure device through app
• Port: 20001 Protocol: TCP
• Port: 20002 Protocol: UDP

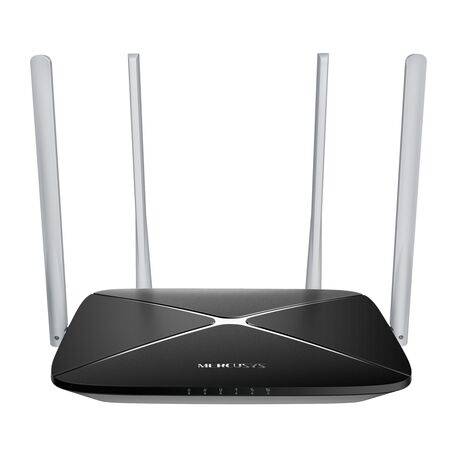

Package Contents AC1200 Wireless Dual Band 4G LTE Router (MB135-4G)
Power Adapter
RJ45 Ethernet Cable
Quick Installation Guide
Environment Operating Temperature: 0 °C40 °C (32 °F104 °F)
Storage Temperature: -40 °C60 °C (-40 °F140 °F)
Operating Humidity: 10%90% Non-Condensing
Storage Humidity: 5%90% Non-Condensing
